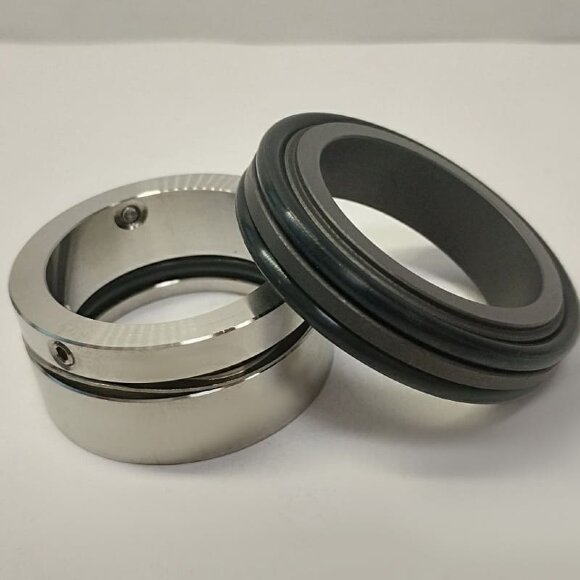

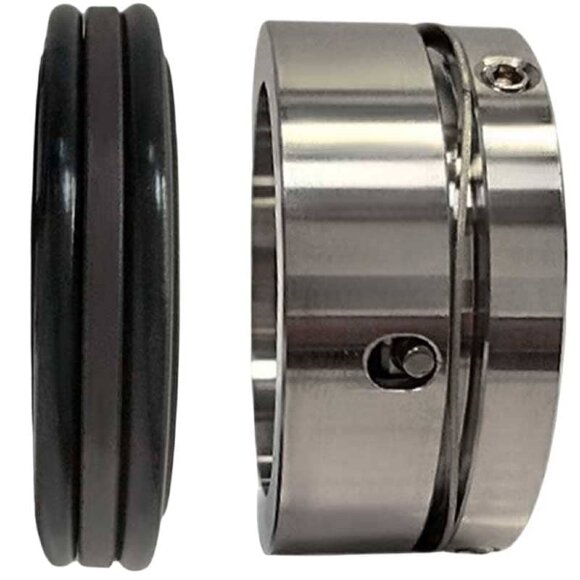

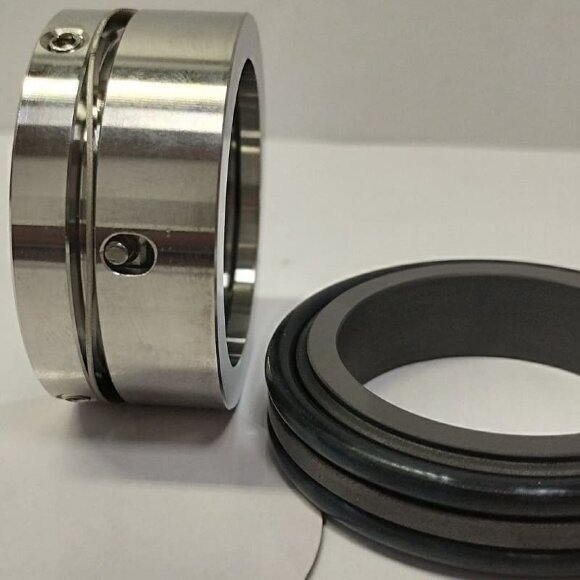

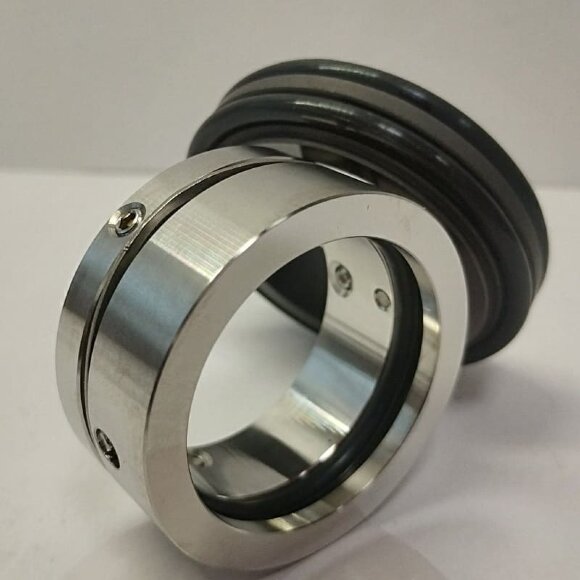

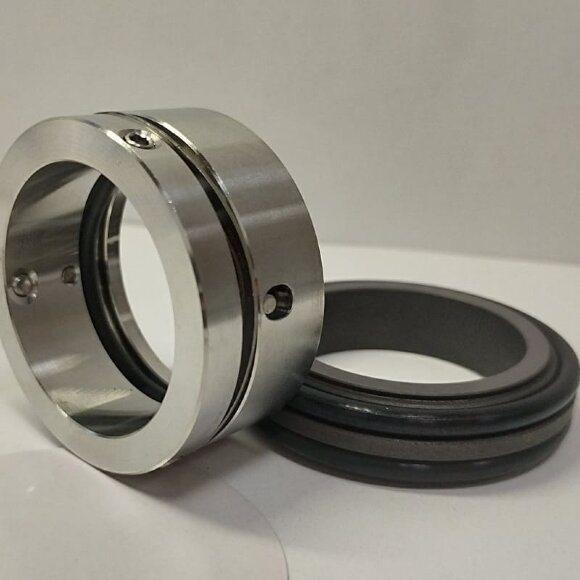

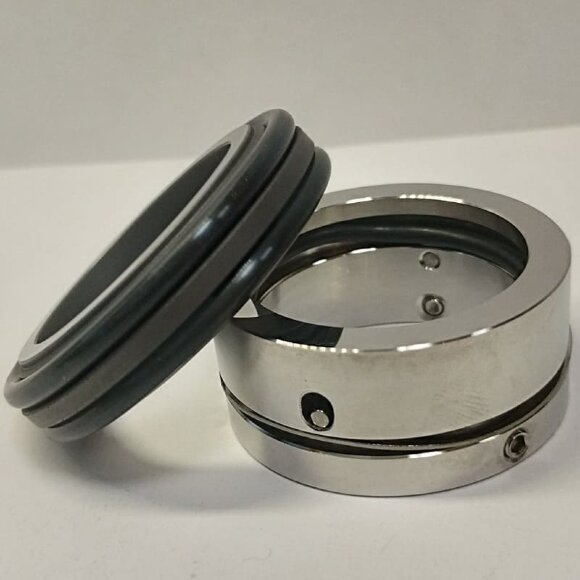

Mechanical seal Inoxpa R-W011 30, SS/CAR, EPDM, 304
$-7
Documentation
Download instructions, catalog for Mechanical seal Inoxpa R-W011 30, SS/CAR, EPDM, 304
Overview
Mechanical seal with wave spring for Inoxpa PROLAC (S-15, S-20, S-26, S-28, S-35, S-38, S-70), Inoxpa® SLR® (SLR-1 / SLR -2 / SLR-3 / SLR-4 / SLR-5), SLRT, SLR-A, Jabsco, Johnson pumps. Analog: John Crane 80 (DF / FP), Flowserve 168, Latty T510, Roplan 800 / 850, Roten 7K, Sterling 280, Vulcan 1688, Vulcan 1 683, AESSEAL W011. Temperature: -20℃~200℃ Pressure: ≤2.5MPa Speed: ≤25m/sec Materials 1 Moving ring: SIC (Silicon Carbide) / SS (Stainless Steel) 2 Fixed ring: CAR (Graphite) 3 Bellows: EPDM (Ethylene Propylene Rubber) 5 Metal parts: Stainless steel SS304 / SS316. Used as an external seal when supplying cooling water. Mechanical seal for pump Wilo, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, for pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, for pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, for pumps Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics

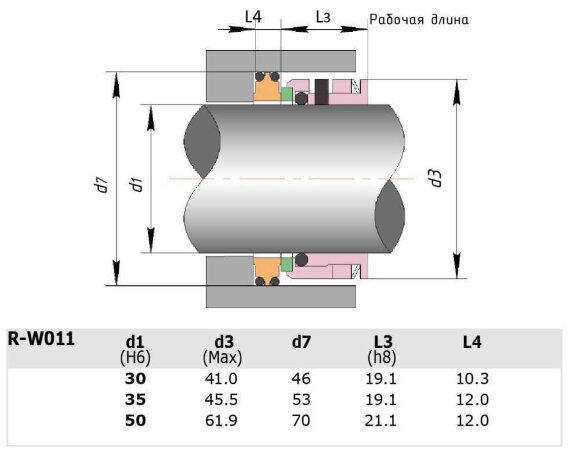

| Outer diameter of the fixed ring, mm | 46 |
| Shaft diameter | 30 |
| Producer | BTS Engineering |
| Stationary and rotating face | SS/CAR |
| Material of metal part | AISI 304 stainless steel |
| Rotation velocity | 25 m / s |
| Pressure | 2.5 MPa |
| Operating temperature | -20°C +200°C |
| Seal type | R-W011 |
| Rubber type | EPDM |
| Application | Inoxpa |
| Analogue for | AESSEAL W011U, Vulcan 1683 |
| Gross weight, kg | 0.3 |
| Length of transport packing, cm | 5,5 |
| Width of transport packing, cm | 5,5 |
| Height of transport packing, cm | 5 |
How to properly measure a mechanical seal
