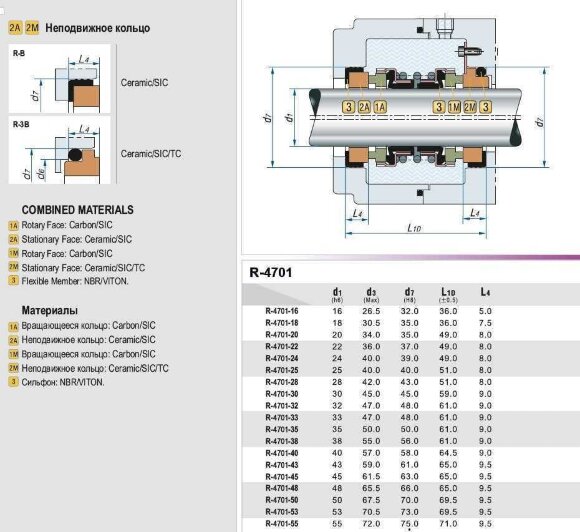

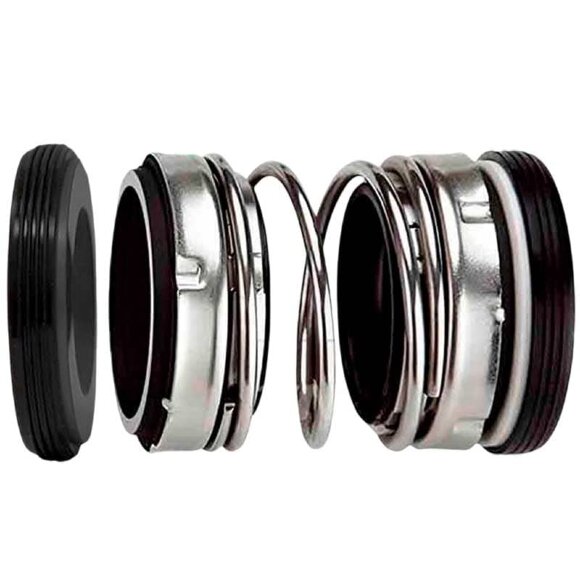

Double mechanical seal R-4701 32, CAR/SIC/CAR/SIC, NBR, 304, T1B
$-5
Documentation
Download instructions, catalog for Double mechanical seal R-4701 32, CAR/SIC/CAR/SIC, NBR, 304, T1B
Overview
Mechanical seal R-4701 is a two-way seal used at temperatures from -20 to + 80°C, with a pressure of up to 0.3 MPa and a speed of up to 3000 rpm. Ideal for water and oil media, drainage and sewage pumps. Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum pumps.
Characteristics
| Outer diameter of the fixed ring, mm | 48 |
| Type of conta-ring | T1B |
| Shaft diameter | 32 |
| Producer | BTS Engineering |
| Stationary and rotating face | CAR/SIC/CAR/SIC |
| Material of metal part | AISI 304 stainless steel |
| Rate of turn, rpm | 3 000 |
| Pressure | 0,3 MPa |
| Operating temperature | -20°C + 80°C |
| Seal type | R-4701 |
| Rubber type | NBR |
| Gross weight, kg | 0.15 |
| Length of transport packing, cm | 6,5 |
| Width of transport packing, cm | 6,5 |
| Height of transport packing, cm | 6 |
How to properly measure a mechanical seal
