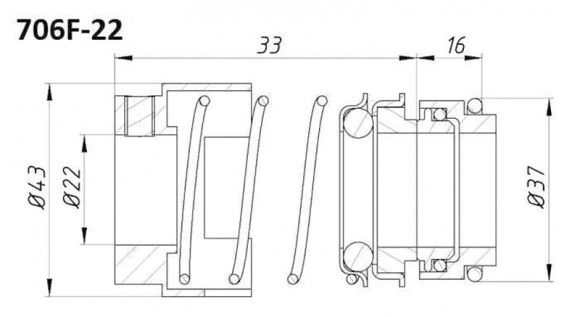

Mechanical seal for Grundfos R-706F 22, TC/TC, VITON, 316
Documentation
Download instructions, catalog for Mechanical seal for Grundfos R-706F 22, TC/TC, VITON, 316
Overview
Mechanical seal type R-706F is designed to pump Grundfos.

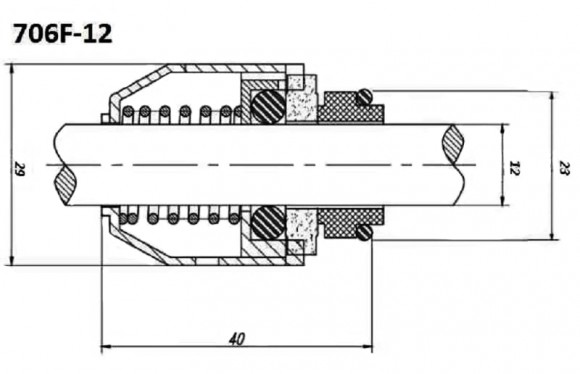

R-706F-12mm: Marking Grundfos 985167, 405145, 405009, 96513598.

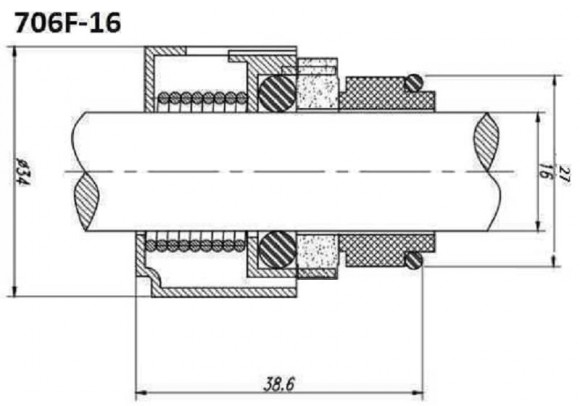

R-706F-16mm: Marking Grundfos 985204, 339701 , 96521638.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 22 |
| Rubber type | VITON |
| Stationary and rotating face | TC/TC |
| Material of metal part | 316 |
| Seal type | R-706F |
| Application | Grundfos |
| Analogue for | Grundfos RUUE, Grundfos AUUE, Grundfos AUUV |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
Categories:R-706FGRUNDFOS - mechanical seal
Video Mechanical seal for Grundfos R-706F 22, TC/TC, VITON, 316
How to properly measure a mechanical seal
