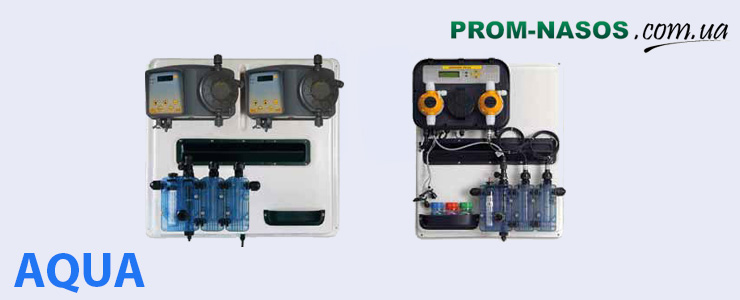

Dosing systems AQUA

A-POOL TECH

Complete panel with proportional pH control and Redox for swimming pools up to 600-800 m3.
Consisting of:

• 1 acid dosing pump for HC300 PH/RX PP-GL-VT acids;
• 1 dosing chlorine pump for HC300 PH/RX PP -GL-VT;
•  modular sensor with umbrella as well as with a filter for cleaning, water level sensor and flow sensor;
• pH and Redox electrodes and buffer mixture;
• 2 low-frequency switches;
• power supply 220-230V 50/60Hz.

A-POOL TECH PRO

Complete panel with proportional pH control and Redox for swimming pools up to 600-800 m3.
Consisting of:

• 1 acid dosing pump for HC300 PH/RX PP-GL-VT acids;
• 1 dosing chlorine pump for HC300 PH/RX PP-GL-VT modular sensor with umbrella as well as with a filter cleaning filter, water level sensor and flow sensor;
• pH and Redox electrodes and buffer mixture;
• 2 low-frequency switches;
• power supply 220-230V 50/60Hz.

A-POOL TOP PRO1

Complete panel for reading pH, ORP, free chlorine and temperature with proportional pH and free chlorine for pools up to 600-800 m3.
Consists of:

• 1 A-MULTI PHRXCLT meter;
• 1 dosing pump for acids HC300 mA PP-GL-VT;
• 1 chlorine dosing pump for HC300 mA PP-GL-VT;
• modular sensor with umbrella (ADCG6F) as well as: a filter for cleaning, a water level sensor and a flow sensor;
• pH, Rx, Pt-Cu electrodes, temperature sensor, pH and Rx buffer mixture;
• 2 low-frequency switches.
• power supply 220-230V 50/60Hz.

A-POOL STAR

Complete pH reading panel, proportional pH control and free chlorine for pools up to 600-800 m3.
Consisting of:

• 1 AW96CLJ meter;
• 1 dosing pump for acids HC300 mA PP-GL-VT;
• 1 chlorine dosing pump for HC300 mA PP-GL-VT;
• water filter, electrode holder, pH and ClF electrodes and buffer mixture, water level sensor and flow sensor;
• 2 low-frequency switches;
• power supply 220-230V 50/60Hz.

A-TECHNOPOOL SYSTEM PH-RX

Full panel with proportional control of pH & Redox.
Consists of:

• 1 Technopool pH-Rx double screw pump;
• modular sensor with umbrella and filter for cleaning, water level sensor and flow sensor;
• pH and Redox electrodes and buffer mixture;
• 2 low-frequency switches.

A-POOL SYSTEM PH-CL

Full panel with proportional control & pH and free chlorine for pools up to & 500 m3.
Consisting of:

• 1 Aquapool pump pH-Cl PVDF-PTFE-VT;
• modular sensor with an umbrella (ADCG5F) as well as: a previous cleaning filter, a water level sensor and a flow sensor;
• pH and Pt-Cu electrodes and buffer mixture;
• 2 low-frequency switches.

A-POOL SYSTEM PH-CLJ

Complete panel with proportional pH and free chlorine for pools up to 500 m3.
Consisting of:

• 1 AQUAPOOL pH-ClJ pump PVDF-PTFE-VT;
• modular sensor with umbrella as well as filter for cleaning, water level sensor and flow sensor;
• pH and Cl electrodes (ADELCLJ25) and pH buffer mixture;
• 2 low-frequency switches.

A-POOL SYSTEM CONNECT PH-RX

Complete panel with proportional control of pH and Redox for pools up to 500 m3.
Consisting of:

• 1 AQUAPOOL CONNECT pH-Rx pump PVDF-PTFE-VT;
• 1 GSM/GPRS Modem + PC software;
• modular sensor with umbrella and filter previous cleaning, water level sensor and flow sensor;
• pH and Redox electrodes and buffer mixture;
• 2 low-frequency switches.

A-POOL SYSTEM CONNECT PH-CL

Complete panel with proportional pH control and free chlorine for pools up to 500 m3.
Consists of:

• 1 AQUAPOOL CONNECT pH-Cl pump PVDF-PTFE-VT;
• 1 modem GSM/GPRS + PC software;
• modular sensor with umbrella ( ADCG5F) as well as: a filter for previous cleaning, a water level sensor and a flow sensor;
• pH and Pt-Cu electrodes and buffer mixture;
• 2 low-frequency switches.

A-POOL SYSTEM CONNECT PH-CLJ

Complete panel with proportional pH control and free chlorine for pools up to 500 m3
Consists of:

• 1 AQUAPOOL CONNECT pH-ClJ pump PVDF-PTFE-VT;
• 1 modem GSM / GPRS + PC software;
• modular sensor with an umbrella as well as an advanced cleaning filter, water level sensor and flow sensor;
• pH and CLJ electrodes (ADELCLJ25) and pH buffer mixture;
• 2 low-frequency switches.
