Vortex high pressure pumps PQ 3000 (Pedrollo)
Vortex pumps PQ 3000 designed for pumping clean water without content in it abrasive particles, as well as liquids that are non-aggressive in their chemical composition.
These pumps received the name "vortex" due to the presence of a rather impressive number of radial blades located on the periphery of the impeller, through which energy is transferred to the pumped liquids.
These pumps are characterized by excellent self-priming ability or, in other words, to they do not need to be pre-filled with the pumped liquid in the suction pipe. Besides, vortex pumps are compact in size, highly efficient and easy to use.
Depending on the design and operational features of a particular series, vortex pumps Pedrollo is widely used in everyday life, industry and other areas of our life.
Specifications
- maximum water pressure: up to 160 m;
- productivity: up to 3 m3/hour;
- power: 2.2 kW;
- diameter of the connected branch pipe: ¾ ";
- voltage: 230/400 V - 50 Hz;
- maximum liquid temperature: 90 °C;
- maximum ambient temperature: 40 °C;
- weight: 19 kg;
- liquid temperature from -10 °C to +90 °C;
- ambient temperature from -10 °C to +40 °C;
- maximum pressure in the case: 18 bar;
- manometric pump suction head up to 8 m;
- continuous work S1.

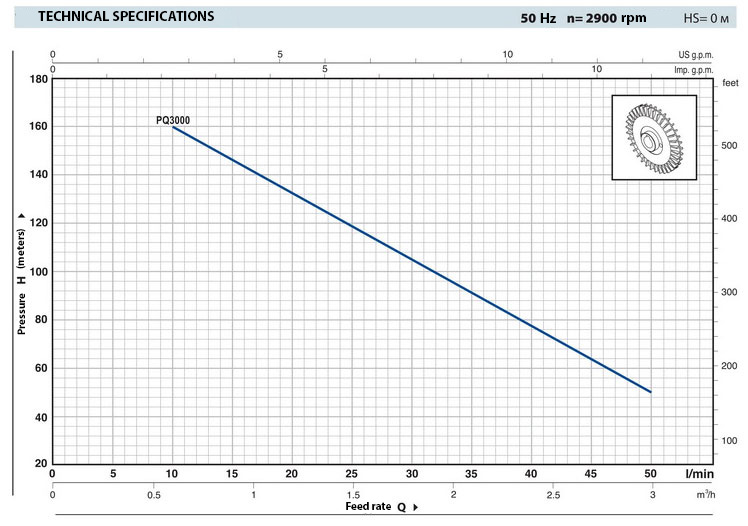

| Type | Power |
Q |
m3/god. | 0 | 0,6 | 0,9 | 1,2 | 1,5 | 1,8 | 2,1 | 2,4 | 2,7 | 3 | |
| Three-phase | kW | KM | l/min. | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |
| PQ 3000 | 2,2 | 3 | Н meters | 180 | 160 | 145 | 132 | 118 | 105 | 92 | 78 | 63,5 | 50 | |
| Q = Supply H = Total manometric head HS = Suction height | Tolerance of characteristics according to EN ISO 9906 Dodatek A. | |||||||||||||
Constructional characteristics of the PQ 3000 pump
- pump body: cast iron, threaded branch pipes ISO 228/1;
- pump housing cover:brass with stainless steel front insert;
- support: aluminum with brass and stainless steel front insert prevents jamming of the impeller after long periods of inactivity;
- Working wheel:bronze, with peripheral radial blades;
- drive shaft:stainless steel EN 10088-3 - 1.4104;
- mechanical seal: ceramics - graphite - NBR;
- electric motor: silent motor, closed type with external ventilation, designed for continuous operation, PQ 3000: three-phase 230/400 V - 50 Hz;
- insulation: class F.
| TYPE | Nozzles | Dimensions mm | |||||||||||||
| Trójfazowy | DN1 | DN2 | а | f | h | hl | h2 | h3 | l | m | n | n1 | w | S | Kg 3~ |
| PQ 3000 | 3/4" | 3/4" | 34 | 329 | 212 | 142 | 38 | 180 | 65 | 100 | 164 | 125 | 97 | 9 | 18.8 |
Pre-order only
Vendor code: 41PQT949A5
| Producer | Pedrollo |
| Pump capacity, m3/h | 3 |
| Feed height, m | 180 |
| Power capacity, kW | 2,2 |
| Input pipe diameter | G 3/4" |
$620
