Pneumatic diaphragm pump PHOENIX P30 PP SANTOPRENE, 35 l/hv for meadow
Also buy with this product
Documentation
Download instructions, catalog for Pneumatic diaphragm pump PHOENIX P30 PP SANTOPRENE, 35 l/hv for meadow
Overview
The PHOENIX series of pneumatic diaphragm pumps manufactured by the Italian company FLUIMAC is represented by a wide range of models for solving production problems of any complexity.
PHOENIX diaphragm pumps, with an innovative air separation system, pump chamber geometry and valve system, allow pumping a wide range of aggressive products (concentrated acids, alkalis, solvents, varnishes, glues, liquids with suspended particles up to 10 mm in size, abrasive products, etc.) with viscosities from 6000 to 55000 cPs.
The flow part of PHOENIX diaphragm pumps is made of such materials as PVDF, Alu, POMc, PP, AISI 316. The main working elements (diaphragms, ball valves, valve seats) are made of PVDF, Alu, POMc, PP, AISI316, PTFE, NBR, PE, SANTOPRENE, HYTREL.
Advantages of FLUIMAC pneumatic diaphragm pumps:
- dry suction up to 6 m;
- self-priming under water up to 9.8 m;
- unlimited dry stroke;

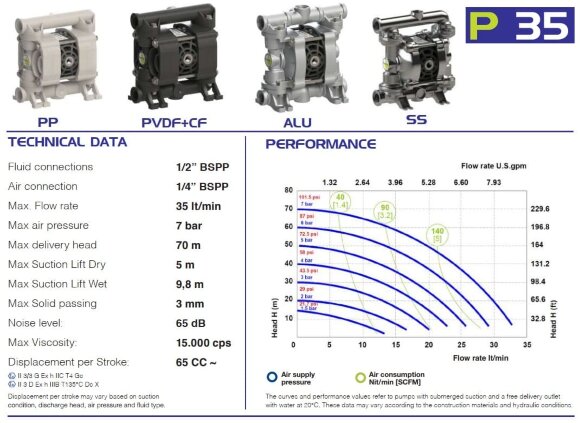

Characteristics
| Temperature (min), °C | -4 |
| Producer | FLUIMAC |
| Pump capacity, cu.m/hour | 2.1 |
| Feed height, m | 70 |
| Material | PP |
| Input pipe diameter | 1/2" |
| Output pipe diameter | 1/2" |
| Noise level ,dB | 65 |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 2.1 |
| Max. head, m | 70 |
| Suction capacity (NPSH), m | 9,8 |
| Max.viscosity, cPs | 15 000 |
| Diametr of the product line | 1/2" |
| Model | PHOENIX 30 |
| Flow rate, l/min | 35 |
| Max.air pressure, bar | 7 |
| Diameter of the pneumatic mainline | 6 mm |
| Max.temperature, C | 65 |
| Max.diameter of solid inclusions, mm | 3 |
| Dry suction height, m | 5 |
| Material of flow channel | PP |
| Diaphragm material at air side | SANTOPRENE |
| Diaphragm material at water side | SANTOPRENE |
| Material of ball valves | PTFE |
| Material of valve seat | PP |
| Serial number of the pump | PHOENIX |
| Country of Origin | Italy |
| PumpType | membrane pneumatic |
| Drive Type | pneumatic |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | nitric acid, ammonia, butane, hydrogen, viscous liquids, clays, ash, kaolin suspension, urea, carbonate, paints, varnish, saturated amine, oleum, peroxide, sulfur, reverse osmosis systems, alcohol, acetic acid, phenol, formalin, phosphates, phosphoric acid, slag, slip, alkalis, ethylene, ethers |
| Analogue for | AGRAL DDE-030, AGRAL DDE-100, AGRAL DDE-160, AGRAL DDE-300, AGRAL DDE-60, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, AquaViva, Astralpool, Debem BOXER, Debem FOODBOXER, Debem SANIBOXER, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, DEPA РМ (Р), DOSITEC, Duotek AF Zone 2 Atex, DUOTEK FOOD, DUOTEK SANI, Emec, FWT, Graco Husky, Grundfos, Injecta, Jesco Pump, MILTON ROY, Milwaukee, PRODOSE, ProMinent, Seko, Sera, WILDEN, YAMADA NDP |
| Weight, kg | 1,8 |
