Overview
Dry motor pumps of IRG Series are vertical in-line single stage centrifugal pumps. Such kind of body design makes them more resistant to mechanical inclusions contained in feed medium in comparison to the similar pumps with “wet” rotor. “In-line” construction of the pump makes it possible to perform in-place pump dismounting without dismantling the elements of pipeline system.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 70 |
| Feed height, m | 25 |
| Power capacity, kW | 5,5 |
| Material | cast iron |
| Input pipe diameter | DN80 |
| Output pipe diameter | DN80 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max. head, m | 25 |
| Nom.pressure, Mpa | 1,6 |

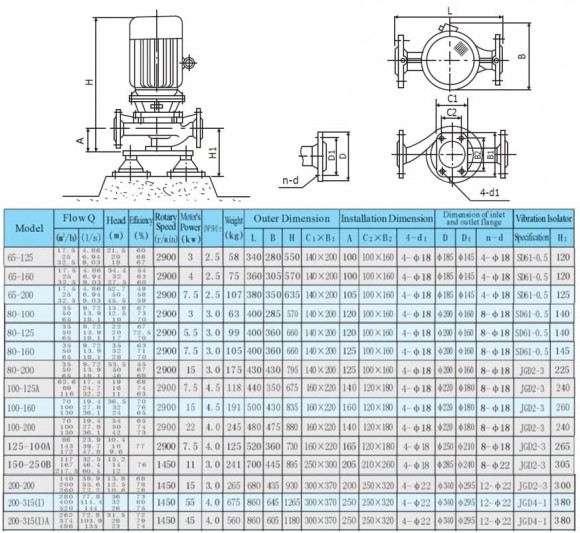

| Dimensions, mm | 400x360x660 |
| Max.flow rate, m3/h | 70 |
| Max.temperature, C | 120 |
| Material of flow channel | cast iron |
| Serial number of the pump | IRG |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | yes |
| Warranty, months | 12 |
| Application | water, cooling tower, ice water, water recycling, heating, increasing pressure, glaze, the drying chamber, drying, circulation |
| Analogue for | AlfaLaval, ALLWEILER, Alweller, APV, Aquario, Aquatechnika, ASTA, Bronzoni, Calpeda, Caprari, Cornell, DAB, DPPumps, Ebara, Flygt, Foras, FRISTAM, GEA, Greenpumps, Grundfos, Hidrostal, Hilge, Hobart, Honda, Hydro-Vacuum, HYPRO, Inoxpa, Johnson, Kenle, KOLMEKS, Kripsol, KSB, LOWARA, Nocchi, Odwerk, OMAC, Omnigena, Onga, Packo, PentairSwimmey, Pentax, PERKINS, Rovatti, SAER, SIHI, Simaco, SOMA, Speroni, Sprut, Sterling, Svanehoj, TAJFUN, TEREX, ThuneEureka, Unitech, VARISCO, Varna, WILO, Zenit |
| Weight, kg | 99 |
