Well pumps Wilo-Sub TWI 5, TWI 5-SE, TWI 5-SE PNP

Well pumps Wilo-Sub TWI 5, TWI 5-SE, TWI 5-SE PNP

Application

Well pumps Wilo-Sub TWI 5, TWI 5-SE, TWI 5-SE PNP - submersible device, equipped with a self-cooling motor. Has a multi-section design.

Submersible well pumps Wilo-Sub TWI 5-SE series intended for the intake of water from wells, ponds or reservoirs, great for garden irrigation and water supply systems country house. The pumps can also be used to pump water out of flooded areas. Possible dry installation.

To take water from wells with a muddy or clogged bottom, a suction can be connected to the pump a pipeline with a float so that the pump only supplies clean water from the surface (Wilo-Sub TWI 5-FS pump).

Catalog

One of the advantages of the model Wilo-Sub TWI 5-SE PNP (Plug-n-Pump) is that the kit includes components that ensure automatic and trouble-free operation of the pump in water supply system.
For its installation and connection to the water supply system of the house it will take no more than 1-2 hours. This submersible pump is capable of delivering heads up to 65 meters. The maximum flow rate is 6 m³/hour, the maximum immersion depth of the pump is 20 meters. Corrosion-resistant materials and modern technologies used in manufacture, provide a long service life.

Liquid supply from wells, cisterns and reservoirs.
Irrigation, watering and pumping of liquid.
Water supply systems.
Rainwater use.

Designation

Example:	TWI 5-SE 304 1 ~
TWI	Stainless steel submersible pump
five	Pump diameter 5 "
Version SE	For installation at the bottom of a well or in a room with a side suction hose connection
Version FS	Integrated float switch
Version PNP *	(Plug-and-Pump): ready-to-connect kit providing automatic pump operation
3	Nominal flow rate Q in m³/h (at optimum efficiency)
04	Number of steps
1 ~	Single-phase current, 1 ~ 230 V 50 Hz

* The kit includes: pump TWI 5-SE; 20 m of power cable and cable; control device FluidControl; suction hose with floating filter.


Wilo TWI 5	Wilo TWI 5-FS	Wilo TWI 5-FS	Wilo TWI 5-SE PNP

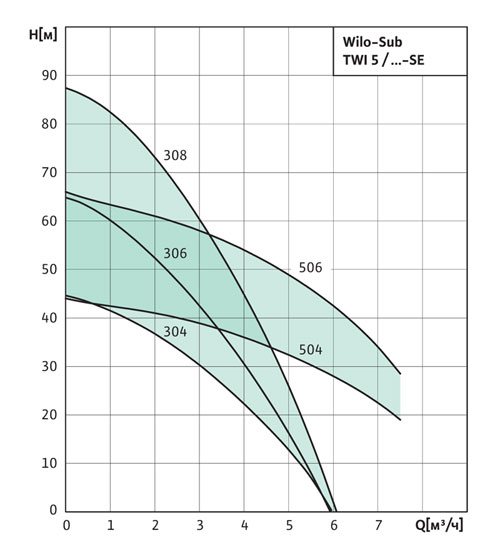

Wilo-Sub

Features /Benefits products

Low energy consumption due to high efficiency.
Robust construction, all hydraulic parts are stainless steel.
The pump is certified for pumping potable water according to KTW, ACS and TÜV.
Self-cooling motor with reliable sealing (can be installed in a dry room).
SE version: for installation at the bottom of a well or in a room with a side connection for connecting the suction hose.
PNP version¹ (Plug-and-Pump): ready-to-connect kit, providing automatic pump operation.
FS version: built-in float switch.

¹ The kit includes: pump TWI 5-SE; 20 m of power cable and cable; control unit FluidControl; suction hose with floating filter.

The lineup Wilo-Sub TWI 5, TWI 5-SE, TWI 5-SE PNP

Pump	Power [kW]	Consumption [m³/hour]	Pressure [m]	Pump diameter [mm]	Pump length [mm]	The weight [kg]
TWI 5 304 1 ~	0.55	3	thirty	129	400	16.9
TWI 5 306 1 ~	0.75	3	42	129	528	17.5
TWI 5 308 1 ~	1.1	3	60	129	576	21.0
TWI 5 504 1 ~	0.75	five	thirty	129	480	18.0
TWI 5 506 1 ~	1.1	five	46	129	528	19.0
SE version	Pump with side connection for connection suction hose
TWI 5-SE 304 1 ~	0.55	3	thirty	174	539	17.0
TWI 5-SE 306 1 ~	0.75	3	42	174	587	18.0
TWI 5-SE 308 1 ~	1.1	3	60	174	635	21.5
TWI 5-SE 504 1 ~	0.75	five	thirty	174	539	18.5
TWI 5-SE 506 1 ~	1.1	five	46	174	587	19.5
PNP version	Ready-to-connect kit that provides automatic pump operation
TWI 5-SE 304 1 ~ PNP	0.55	3	thirty	174	539	17.0
TWI 5-SE 306 1 ~ PNP	0.75	3	42	174	587	18.0
FS version	Pump with integrated float switch
TWI 5-FS 304 1 ~	0.55	3	thirty	129	400	17.1
TWI 5-FS 306 1 ~	0.75	3	42	129	528	17.7
TWI 5-FS 504 1 ~	0.75	five	thirty	129	480	18.2
TWI 5-FS 506 1 ~	1.1	five	46	129	528	19.2

Well pump TWI five

Automatic water supply to the house from a well

Pump.
Pump control and protection device.
Floating suction filter.
Hydroaccumulator.
Backwash filter.
