Self-priming centrifugal pumps Wilo-Jet WJ

Self-priming centrifugal pumps Wilo-Jet WJ

Application

Self-priming centrifugal pumps Wilo-Jet WJ it is applied for water supply at home and irrigation from a shallow reservoir, if the water is at a depth of no more than 8 m.

PumpsWilo-Jet Wj recommended for pumping clean water and chemically non-aggressive liquids. Can be used in everyday life and industry, for automatic water supply in conjunction with tanks for maintaining pressure, for irrigation of vegetable gardens, orchards, etc. Install in places protected from the weather. It is recommended to install a return valve on the suction port. valve.

Pumping water from wells.
Liquid filling, emptying, pumping liquid, irrigation and watering.
As an emergency pump in case of flooding.

Catalog

Designation

Example:	WJ 201 1 ~
Wj	Wilo-Jet pumps
2	Nominal flow rate Q in m³/h at optimum efficiency
01	Number of pump stages
1 ~	Single phase current, 1 ~ 220 V, 50 Hz

Wilo

Technical characteristics

Stainless steel construction: durable and corrosion resistant.
Self-priming up to 8 m.
The maximum flow rate is 4.5 m³/hour.
Built-in motor protection.
Mains connection 1 ~ 220 V.
Liquid temperature max. from +5 °C to +35 °C.
Working pressure max. 6 bar.

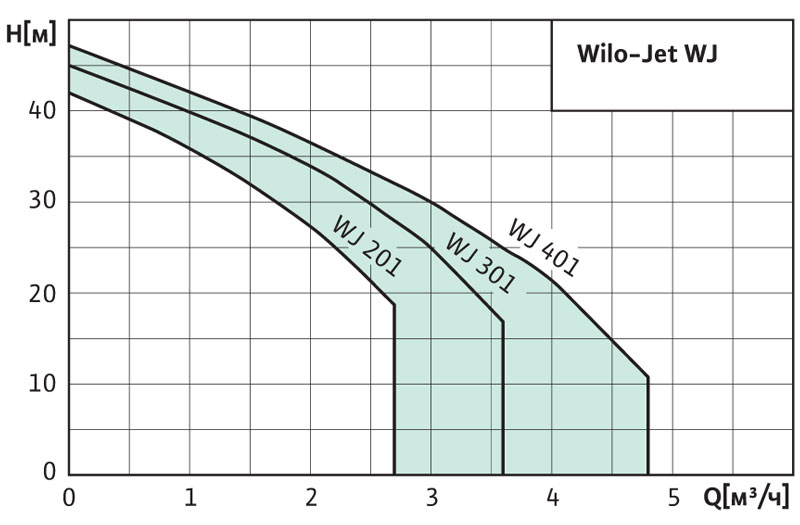

The lineup Wilo-Jet WJ

Pump	Power [kW]	Consumption [m³/hour]	Pressure [m]	The weight [kg]
WJ 201 1 ~	0.8	1.7	thirty	9.8
WJ 301 1 ~	1.1	2.0	34	12.8
WJ 401 1 ~	1.3	3.0	thirty	13.0
