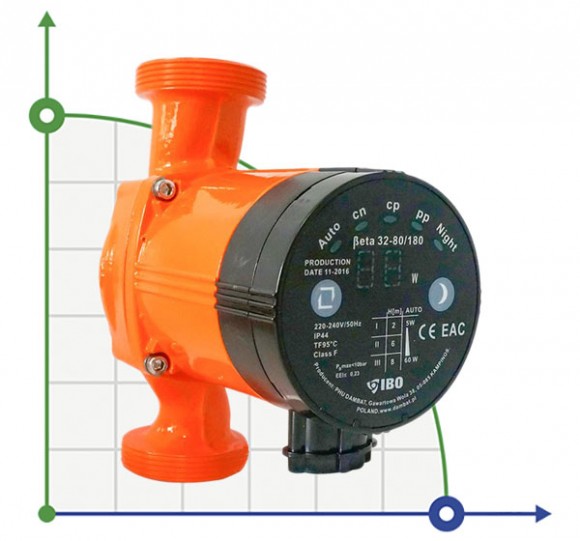

Electronic circulation pump Beta 32-80/180 for heating
Overview
The pumps of this series are electronic energy – efficient pumps that meet Class A. The Pump's Energy Efficiency Index EEI<=0.23.
An electronic processor is built into the pump housing, which is able to adjust the speed of rotation of the shaft, as well as adapt to the needs of the heating system.
Depending on the version, the pump body can be made of cast iron or bronze. BETA Series pumps are equipped with AUTOadapt function and "Night Mode"function. All pumps are equipped with a cable with a plug.
Pumps with mounting lengths of 130 and 180 mm are available to order.
Characteristics
| Producer | IBO |
| Power capacity, kW | 0,06 |
| Input pipe diameter | G1 |
| Output pipe diameter | G1 |
| Protection | IP44 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 4.2 |
| Max.temperature, C | 100 |
| Max. head, m | 8 |
| Housing material | Сast iron |
| Impeller material | technopolymer |
| Country of Origin | Poland |
| PumpType | with wet rotor |
| Drive Type | electric |
| Weight, kg | 1,8 |
