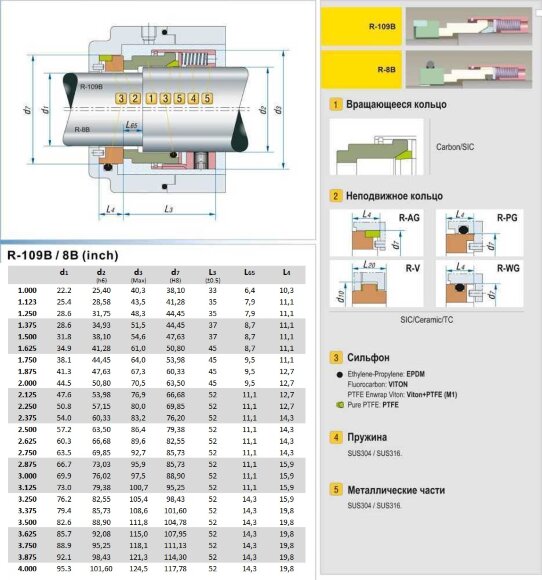

Mechanical seal R-8B 3.1/2, CAR/SIC, VITON, 304, AG
$-57.09
Documentation
Download instructions, catalog for Mechanical seal R-8B 3.1/2, CAR/SIC, VITON, 304, AG
Overview
Mechanical seal R-8B is used at temperatures ranging from -20 to + 120°C, with pressures up to 5, 8 mPa and the rotation speed to 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 3.1/2 |
| Rubber type | VITON |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 304 |
| Type of conta-ring | AG |
| Rotation velocity | 25 m / s |
| Operating temperature | -20°C +200°C |
| Seal type | R-8B |
How to properly measure a mechanical seal
