Mechanical seal R-58B 30, CAR/SIC, VITON, 304, ВО
$-9
Documentation
Download instructions, catalog for Mechanical seal R-58B 30, CAR/SIC, VITON, 304, ВО
Overview

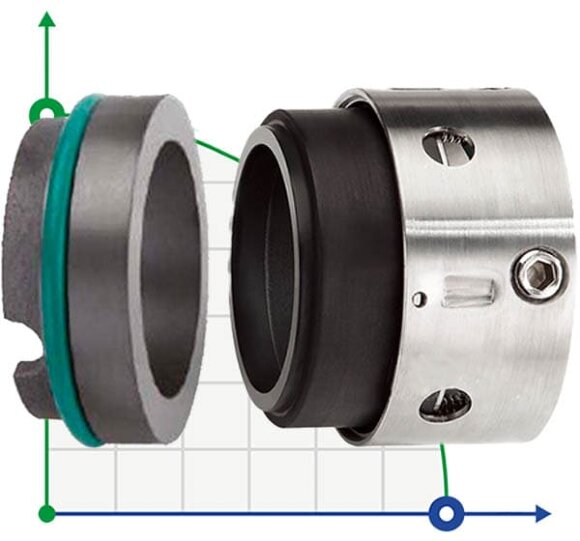

Multi-spring mechanical seal, balanced, with O-ring R-58B is used at temperatures from -40 to + 200°C, with a pressure of up to 5.0 MPa and a rotation speed of 25 m/sec.
Analogue of John Crane 58B mechanical seals.
Mechanical seal for Wilo, K, KM, X, AX, AXP, AX, Calpeda, DAB, Ebara, Grundfos pumps, for KSB pumps, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam pumps, for SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK pumps, for Tuchenhagen pumps, ALFA LAVAL, Donjoy, Mission Magnum.n)
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 30 |
| Rubber type | VITON |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 304 |
| Type of conta-ring | ВО |
| Pressure | 5 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |
| Seal type | R-58B |
| Analogue for | Hermetica 351, AESSEAL M04SU, AESSEAL M04S, Burgmann BT-C5.KB, John Crane 58B, LIDERING LMS20B, Vulcan 1659BS |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
How to properly measure a mechanical seal
