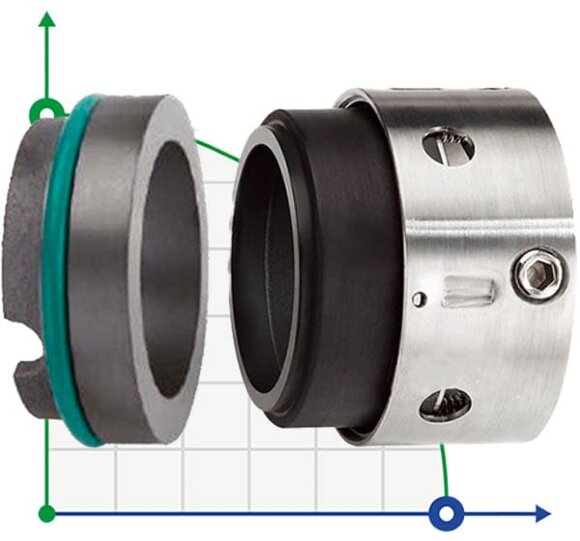

Mechanical seal R-58B 43, CAR/SIC, VITON, 304, ВО
$-15.60
Documentation
Download instructions, catalog for Mechanical seal R-58B 43, CAR/SIC, VITON, 304, ВО
Overview
R-58B mechanical seal is used at temperatures ranging from -40 to + 120°C, a pressure of 5 MPa and 2 rotation speed of 25 m/sec.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 43 |
| Rubber type | VITON |
| Stationary and rotating face | CAR/SIC |
| Material of metal part | 304 |
| Type of conta-ring | ВО |
| Pressure | 5.2 MPa |
| Rotation velocity | 25 m / s |
| Operating temperature | -40°C +200°C |
| Seal type | R-58B |
| Analogue for | Hermetica 351, AESSEAL M04SU, AESSEAL M04S, Burgmann BT-C5.KB, John Crane 58B, LIDERING LMS20B, Vulcan 1659BS |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
How to properly measure a mechanical seal
