- Mechanical seal R-58V

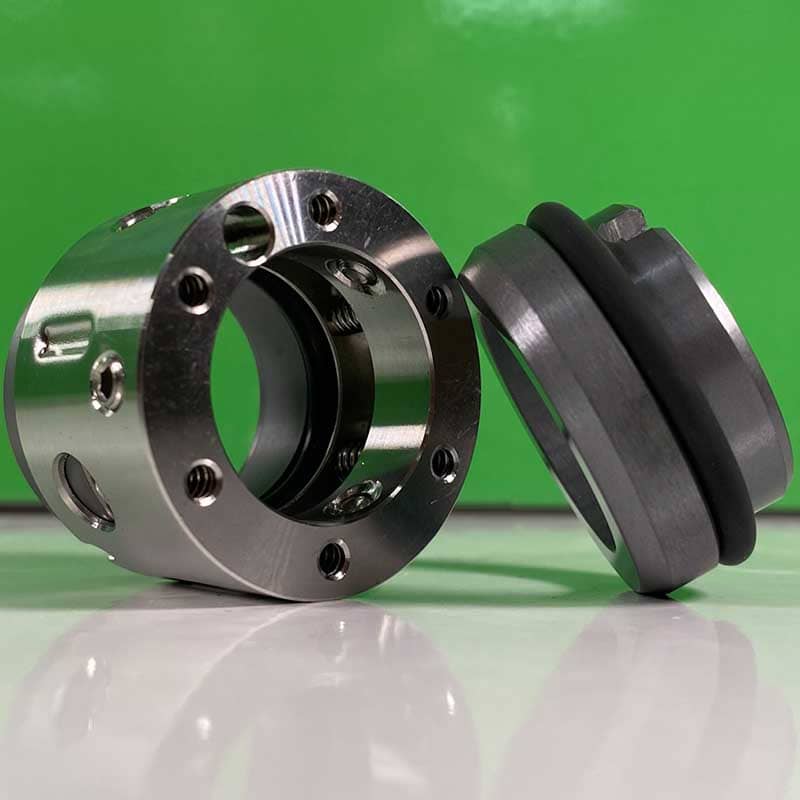

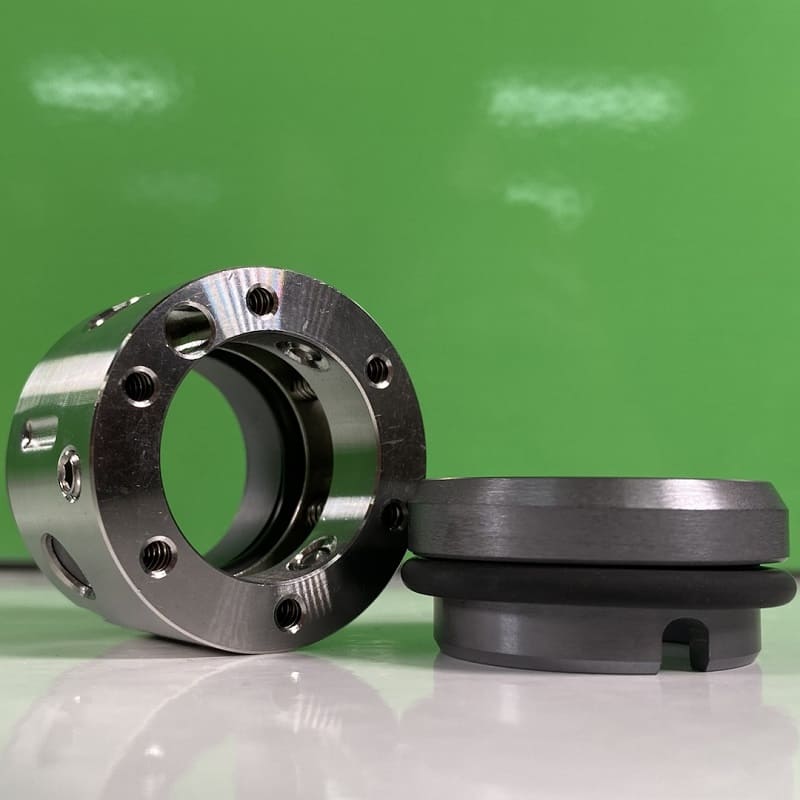

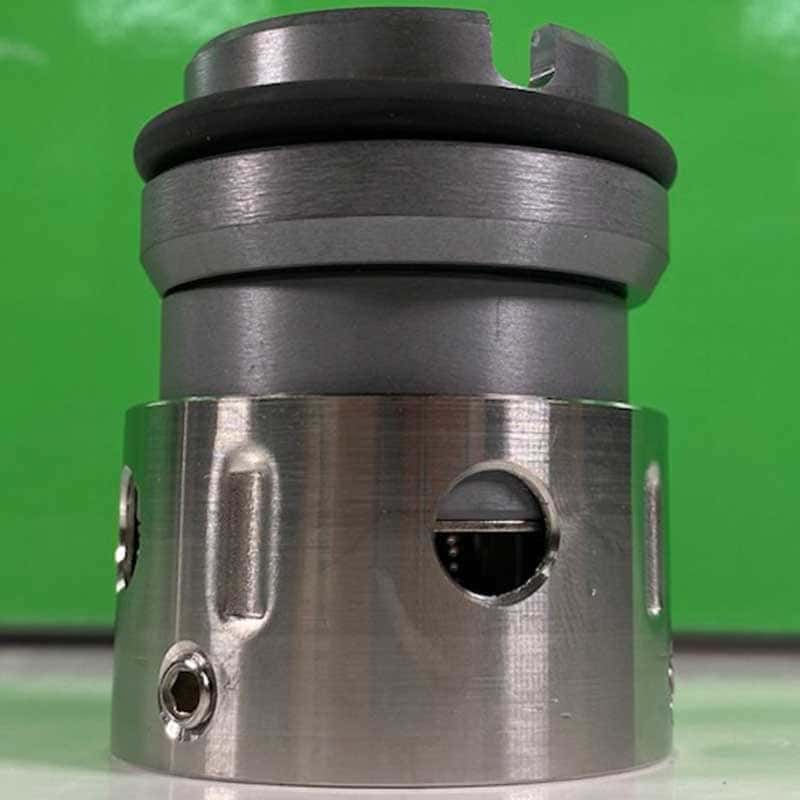

Mechanical seal R-58V




Temperature: -20°C ~ 200°C
Pressure: ≤1 MPa
Speed: ≤20 m/s
Materials
- Rotating ring: SiC/Сar;
- Stationary ring: SIC/CER/TC;
- Secondary seal: EPDM/VITON/NBR/ FFKM/PTFE;
- Spring: SS304/SS316;
- Metal parts: SS304/SS316.
Mechanical Seal R-58V — single, multi-spring, unbalanced, independent of shaft rotation direction. Thanks to the set of small springs, the load in the friction pairs is distributed evenly. A modification with secondary wedge seals made of PTFE is possible, allowing the seal to be used in aggressive corrosive environments. Also used as a component of tandem, double, or in combination with another type of seal. Available in ATEX version and materials compliant with FDA and EC 1935/2004.
Applications: Hydro-Vacuum S.A., Thune Eureka, LEISTRITZ PUMPEN GMBH, KSB, XM, AX, XMS, VK, ONL, VKS, ONC and other centrifugal pumps, mixers, agitators for chemical, petrochemical, gas, and pharmaceutical industries.
Type: ANGA V, John Crane 59U/58U, Aesseal M03/M03U/M03S/M03SU, Vulcan 1659/1659S, Burgmann BT-C56.KU/BT-C5.KU.

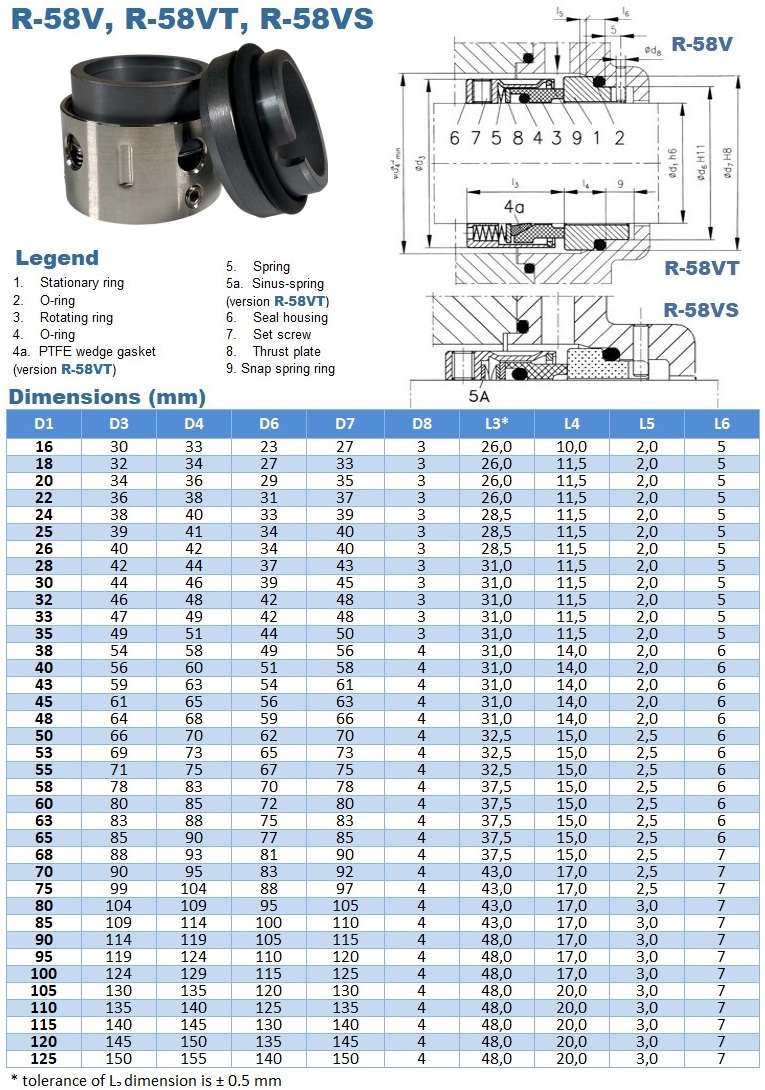

Shaft diameter | 26 |
Outer diameter of the fixed ring, mm | 40 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 16 |
Outer diameter of the fixed ring, mm | 27 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 18 |
Outer diameter of the fixed ring, mm | 33 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 20 |
Outer diameter of the fixed ring, mm | 35 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 22 |
Outer diameter of the fixed ring, mm | 37 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 24 |
Outer diameter of the fixed ring, mm | 39 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 25 |
Outer diameter of the fixed ring, mm | 40 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 28 |
Outer diameter of the fixed ring, mm | 43 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 30 |
Outer diameter of the fixed ring, mm | 45 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 32 |
Outer diameter of the fixed ring, mm | 48 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 33 |
Outer diameter of the fixed ring, mm | 48 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 35 |
Outer diameter of the fixed ring, mm | 50 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 38 |
Outer diameter of the fixed ring, mm | 56 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 40 |
Outer diameter of the fixed ring, mm | 58 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 43 |
Outer diameter of the fixed ring, mm | 61 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 45 |
Outer diameter of the fixed ring, mm | 63 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 48 |
Outer diameter of the fixed ring, mm | 66 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 50 |
Outer diameter of the fixed ring, mm | 70 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 53 |
Outer diameter of the fixed ring, mm | 73 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 55 |
Outer diameter of the fixed ring, mm | 75 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 58 |
Outer diameter of the fixed ring, mm | 78 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 60 |
Outer diameter of the fixed ring, mm | 80 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 63 |
Outer diameter of the fixed ring, mm | 83 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 65 |
Outer diameter of the fixed ring, mm | 85 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 68 |
Outer diameter of the fixed ring, mm | 90 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 70 |
Outer diameter of the fixed ring, mm | 92 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 75 |
Outer diameter of the fixed ring, mm | 97 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 80 |
Outer diameter of the fixed ring, mm | 105 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 85 |
Outer diameter of the fixed ring, mm | 110 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
Shaft diameter | 90 |
Outer diameter of the fixed ring, mm | 115 |
Producer | BTS Engineering |
Stationary and rotating face | CAR/SIC |
Material of metal part | AISI 304 stainless steel |
