Mechanical seal R-BED

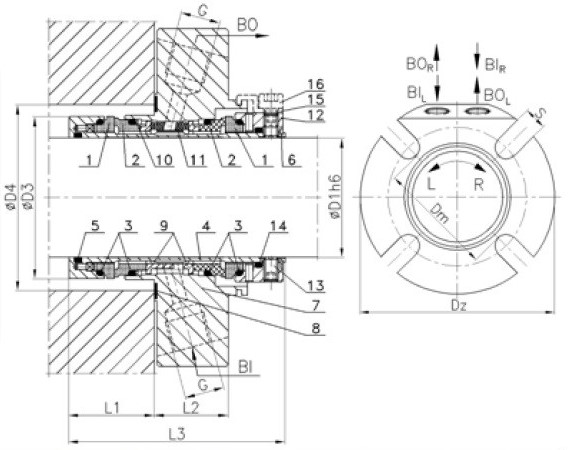

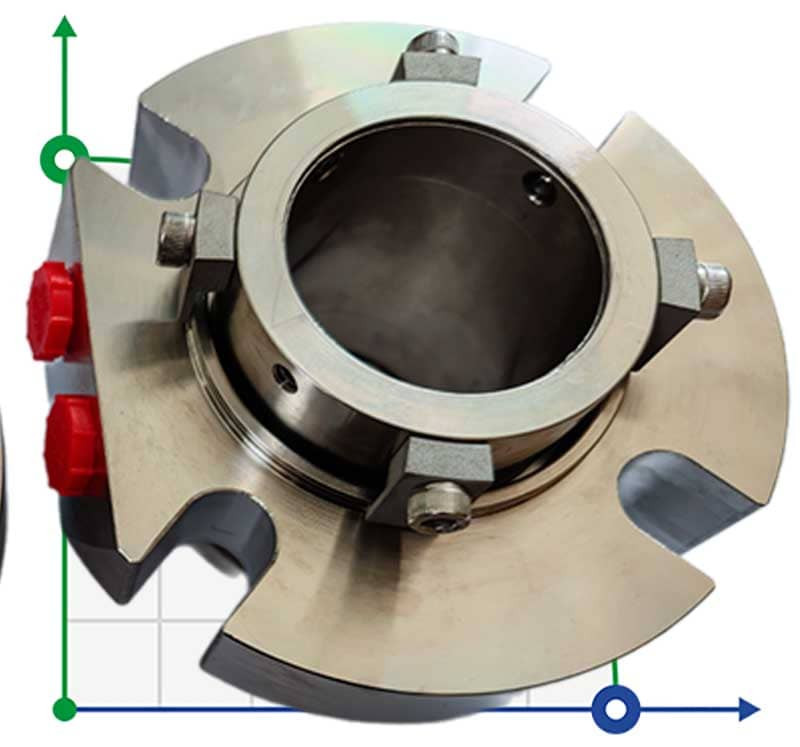

Double Cartridge Seal R-BED is a fully assembled unit designed for use in stuffing box chambers of centrifugal pumps and mixers. It operates with arbitrary direction of rotation, is hydraulically balanced, and the multi-spring assembly is reliably protected from environmental influences. Requires a buffer fluid supply system (API PLAN 52) or barrier fluid system (API PLAN 53).
Application: The R-BED seal has proven excellent in petrochemical, chemical, pharmaceutical, sugar, and pulp and paper industries, as well as in wastewater treatment plants — everywhere the medium contains many abrasives and is environmentally hazardous.
Type: ANGA BED
Temperature: -20°~200°
Pressure: ≤1.6 MPa
Speed: ≤12.5 m/s
Materials
- Rotating ring: SIC/TC
- Stationary ring: CAR/SIC/TC
- Bellows: EPDM/VITON/NBR/FFKM
- Spring: M (Hastelloy® C-4)
- Metal parts: M (Hastelloy® C-4)/SS316
Pre-order only
Vendor code: 1051085
| Shaft diameter | 55 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,563.90
$-82.30
$1,646.20
Pre-order only
Vendor code: 1051561
| Shaft diameter | 22 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$625.55
$-32.93
$658.48
Pre-order only
Vendor code: 1051562
| Shaft diameter | 25 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$710.85
$-37.41
$748.26
Pre-order only
Vendor code: 1051563
| Shaft diameter | 26 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$739.28
$-38.91
$778.19
Pre-order only
Vendor code: 1051564
| Shaft diameter | 28 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$796.16
$-41.91
$838.07
Pre-order only
Vendor code: 1051565
| Shaft diameter | 30 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$853.03
$-44.89
$897.92
Pre-order only
Vendor code: 1051566
| Shaft diameter | 32 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$909.88
$-47.90
$957.78
Pre-order only
Vendor code: 1051567
| Shaft diameter | 33 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$938.31
$-49.39
$987.70
Pre-order only
Vendor code: 1051568
| Shaft diameter | 35 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$995.21
$-52.37
$1,047.58
Pre-order only
Vendor code: 1051569
| Shaft diameter | 38 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,080.49
$-56.88
$1,137.37
Pre-order only
Vendor code: 1051570
| Shaft diameter | 40 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,137.37
$-59.85
$1,197.22
Pre-order only
Vendor code: 1051571
| Shaft diameter | 43 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,222.67
$-64.36
$1,287.03
Pre-order only
Vendor code: 1051572
| Shaft diameter | 45 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,279.54
$-67.34
$1,346.88
Pre-order only
Vendor code: 1051573
| Shaft diameter | 48 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,364.82
$-71.84
$1,436.66
Pre-order only
Vendor code: 1051574
| Shaft diameter | 50 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,421.72
$-74.82
$1,496.54
Pre-order only
Vendor code: 1051575
| Shaft diameter | 53 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,507
$-79.32
$1,586.32
Pre-order only
Vendor code: 1051576
| Shaft diameter | 60 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,706.06
$-89.78
$1,795.84
Pre-order only
Vendor code: 1051577
| Shaft diameter | 65 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,848.24
$-97.26
$1,945.50
Pre-order only
Vendor code: 1051578
| Shaft diameter | 70 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$1,990.42
$-104.74
$2,095.16
Pre-order only
Vendor code: 1051579
| Shaft diameter | 75 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,132.57
$-112.23
$2,244.80
Pre-order only
Vendor code: 1051580
| Shaft diameter | 80 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,274.73
$-119.73
$2,394.46
Pre-order only
Vendor code: 1051581
| Shaft diameter | 85 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,416.91
$-127.21
$2,544.12
Pre-order only
Vendor code: 1051582
| Shaft diameter | 90 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,559.08
$-134.70
$2,693.78
Pre-order only
Vendor code: 1051583
| Shaft diameter | 95 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,701.24
$-142.18
$2,843.42
Pre-order only
Vendor code: 1051584
| Shaft diameter | 100 |
| Producer | BTS Engineering |
| Stationary and rotating face | SIC/SIC/CAR/SIC |
| Material of metal part | Hastelloy/316 |
| Pressure | 1,6 mPa |
$2,843.42
$-149.66
$2,993.08
