Mechanical seal R-H12N
Mechanical seal R-H12N
The mechanical seal of the shaft R-H12N is single, unloaded, with a conical spring and a one–way direction of rotation. Modifications with a hot-pressed movable ring (H17GN) and with a control ring G115 for cooling in hot water (H127G115) are possible.
Application: KSB, Pentax and other pumps for water supply, hot water, etc.
Type: Burgmann H12N/H17GN, Flowserve 43D seal, Latty T901D seal, Roplan R62D seal, AESSEAL T01DB/T01DBU.
Temperature: -20°~220°
Pressure: ≤1.4 MPa
Speed: ≤15 m/sec
Materials:
- Rotary ring: Carbon/SIC;
- Stationary ring: Carbon/SUS/SIC/TC;
- Bellows: EPDM/VITON/PTFE;
- Spring: SS304/SS316;
- Metal parts: SS304/SS316.

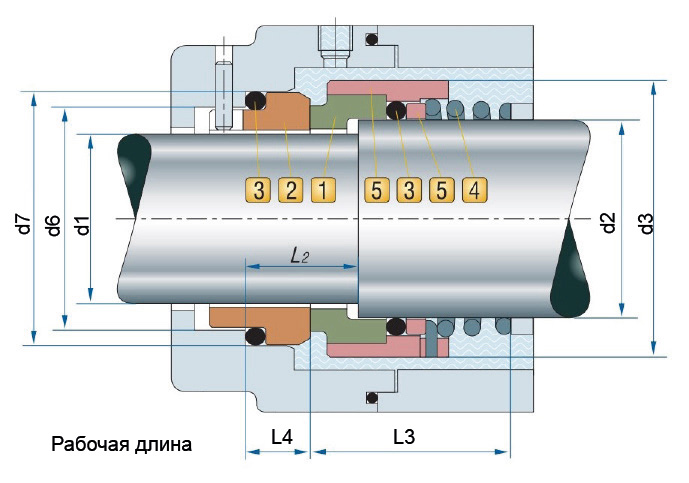

| d1 H6 | d2 | d3 (MAX) | d6 | d7 (H8) | L2 | L3 (±0.5) | L4 |
| 12 | 16,00 | 26,00 | 19,00 | 23,00 | 18,00 | 26,50 | 10,00 |
| 14 | 18,00 | 31,00 | 21,00 | 25,00 | 18,00 | 29,50 | 10,00 |
| 16 | 20,00 | 34,00 | 23,00 | 27,00 | 18,00 | 31,00 | 10,00 |
| 18 | 22,00 | 36,00 | 27,00 | 33,00 | 20,00 | 32,50 | 11,50 |
| 20 | 24,00 | 38,00 | 29,00 | 35,00 | 20,00 | 32,50 | 11,50 |
| 22 | 26,00 | 40,00 | 31,00 | 37,00 | 20,00 | 32,50 | 11,50 |
| 24 | 28,00 | 42,00 | 33,00 | 39,00 | 20,00 | 32,50 | 11,50 |
| 25 | 30,00 | 44,00 | 34,00 | 40,00 | 20,00 | 32,50 | 11,50 |
| 28 | 33,00 | 47,00 | 37,00 | 43,00 | 20,00 | 32,50 | 11,50 |
| 30 | 35,00 | 49,00 | 39,00 | 45,00 | 20,00 | 32,50 | 11,50 |
| 32 | 38,00 | 54,00 | 42,00 | 48,00 | 20,00 | 39,50 | 11,50 |
| 33 | 38,00 | 54,00 | 42,00 | 48,00 | 20,00 | 39,50 | 11,50 |
| 35 | 40,00 | 56,00 | 44,00 | 50,00 | 20,00 | 43,50 | 11,50 |
| 38 | 43,00 | 59,00 | 49,00 | 56,00 | 23,00 | 46,00 | 14,00 |
| 40 | 45,00 | 61,00 | 51,00 | 58,00 | 23,00 | 48,00 | 14,00 |
| 43 | 48,00 | 64,00 | 54,00 | 61,00 | 23,00 | 51,00 | 14,00 |
| 45 | 50,00 | 66,00 | 56,00 | 63,00 | 23,00 | 55,00 | 14,00 |
| 48 | 53,00 | 69,00 | 59,00 | 66,00 | 23,00 | 55,00 | 14,00 |
| 50 | 55,00 | 71,00 | 62,00 | 70,00 | 25,00 | 58,00 | 15,00 |
| 53 | 58,00 | 78,00 | 65,00 | 73,00 | 25,00 | 60,00 | 15,00 |
| 55 | 60,00 | 79,00 | 67,00 | 75,00 | 25,00 | 60,00 | 15,00 |
| 58 | 63,00 | 83,00 | 70,00 | 78,00 | 25,00 | 60,00 | 15,00 |
| 60 | 65,00 | 85,00 | 72,00 | 80,00 | 25,00 | 60,00 | 15,00 |
| 63 | 68,00 | 88,00 | 75,00 | 83,00 | 25,00 | 60,00 | 15,00 |
| 65 | 70,00 | 90,00 | 77,00 | 85,00 | 25,00 | 61,00 | 15,00 |
| 70 | 75,00 | 98,00 | 83,00 | 92,00 | 28,00 | 63,00 | 18,00 |
| 75 | 80,00 | 103,00 | 88,00 | 97,00 | 28,00 | 68,00 | 18,00 |
| 80 | 85,00 | 109,00 | 95,00 | 105,00 | 28,00 | 68,00 | 18,20 |
