ProducerBTS Engineering
Pump capacity, m3/h160
Feed height, m50
Power capacity, kW37
Materialcast iron
All specifications
Ukraine: In stockPoland: Pre-order onlyGermany: Pre-order onlyItaly: Pre-order only
Vendor code: 1000965
$3,232netto
-+Buy

Documentation

Download instructions, catalog for IRG 100-200 (I) Centrifugal pump

Overview

BTS Engineering
IRG Series dry motor pumps are vertical in-line single stage centrifugal pumps. Such kind of body design makes them more resistant to mechanical inclusions contained in liquid at the inlet compared to the similar pumps with “wet” rotor. “In-line” construction of the pump makes it possible to perform in-place pump dismounting without dismantling the elements of pipeline system.

Characteristics

ProducerBTS Engineering
Pump capacity, m3/h160
Feed height, m50
Power capacity, kW37
Materialcast iron
Input pipe diameterDN100
Output pipe diameterDN100
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Nom.pressure, Mpa1,6
Max.flow rate, m3/h192
Max.temperature, C120
Nom.flow rate, m3/h160

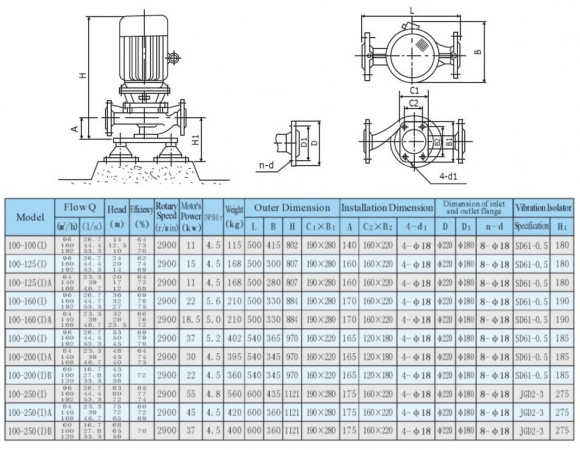

Dimensions, mm560x365x970
Nom.head, m50
Max. head, m53
Material of flow channelcast iron
Serial number of the pumpIRG
Country of OriginChina
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Availability of spare partsYes
Warranty, months12
Applicationwater, cooling tower, ice water, water recycling, heating, increasing pressure, glaze, the drying chamber, drying, circulation
Analogue forAlfaLaval, ALLWEILER, Alweller, APV, Aquario, Aquatechnika, ASTA, Bronzoni, Calpeda, Caprari, Cornell, DAB, DPPumps, Ebara, Flygt, Foras, FRISTAM, GEA, Greenpumps, Grundfos, Hidrostal, Hilge, Hobart, Honda, Hydro-Vacuum, HYPRO, Inoxpa, Johnson, Kenle, KOLMEKS, Kripsol, KSB, LOWARA, Nocchi, Odwerk, OMAC, Omnigena, Onga, Packo, PentairSwimmey, Pentax, PERKINS, Rovatti, SAER, SIHI, Simaco, SOMA, Speroni, Sprut, Sterling, Svanehoj, TAJFUN, TEREX, ThuneEureka, Unitech, VARISCO, Varna, WILO, Zenit
Weight, kg402

Categories:Inline pumpsCentrifugal pumpsWood drying (circulation pumps)Pumps with dry rotor made of IRG cast iron
