Mechanical seal R-M010D

Mechanical seal R-M010D

Double mechanical seal R-M010D - independent of the shaft rotation direction, non-unloading. Thanks to a set of small springs, the pressure on the friction pairs is distributed more evenly. A barrier fluid is used in the end face seal chamber for lubrication and cooling of the sealing surfaces, under a pressure exceeding the pressure of the working medium by 0.1...0.2 MPa.

Applications: clean water, wastewater, petroleum products.

Equivalent mechanical seals: AESSEAL M010D, Burgmann M74-D, Anga VD, Roten 822, LIDERING LMS10D.

Temperature: -20°~180°

Pressure: ≤1.6 MPa

Speed: ≤15 m/s

Materials:

Rotating ring: Carbon/SIC/TC;
Stationary ring: Carbon/SIC/TC;
Bellows: EPDM/NBR/VITON;
Spring: SS304/SS316;
Metal parts: SS304/SS316.

Download PDF

Sort by:

In stock

Producer: BTS EngineeringClear

Double mechanical seal R-M010D 48, CAR/SIC/CAR/SIC, EPDM, 304

In stock

Vendor code: 1043604

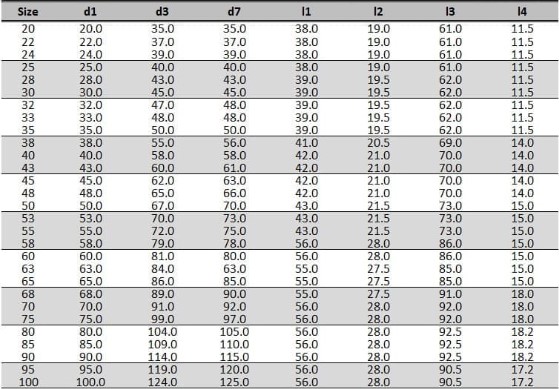

Shaft diameter	48
Outer diameter of the fixed ring, mm	66
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$377

Mechanical seal R-M010D 20, CAR/SIC/CAR/SIC, EPDM, 304, analogue Burgmann M74-D, Anga VD, Roten 822 842 844, LIDERING LMS10D, AESSEAL M010D

Pre-order only

Vendor code: 1043805

Shaft diameter	20
Outer diameter of the fixed ring, mm	35
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$157

Mechanical seal R-M010D 22, CAR/SIC/CAR/SIC, EPDM, 304, analogue LIDERING LMS10D, AESSEAL M010D, Burgmann M74-D, Anga VD, Roten 822 842 844

Pre-order only

Vendor code: 1043806

Shaft diameter	22
Outer diameter of the fixed ring, mm	37
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$173

Mechanical seal R-M010D 24, CAR/SIC/CAR/SIC, EPDM, 304, analogue Roten 822 842 844, LIDERING LMS10D, Burgmann M74-D, AESSEAL M010D, Anga VD

Pre-order only

Vendor code: 1043807

Shaft diameter	24
Outer diameter of the fixed ring, mm	39
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$189

Double mechanical seal R-M010D 25, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043809

Shaft diameter	25
Outer diameter of the fixed ring, mm	40
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$196

Mechanical seal for pump R-M010D 28, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043810

Shaft diameter	28
Outer diameter of the fixed ring, mm	43
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$220

Double mechanical seal R-M010D 30, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043811

Shaft diameter	30
Outer diameter of the fixed ring, mm	45
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$236

Double mechanical seal R-M010D 32, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043812

Shaft diameter	32
Outer diameter of the fixed ring, mm	48
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$251

Double mechanical seal R-M010D 33, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043813

Shaft diameter	33
Outer diameter of the fixed ring, mm	48
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$259

Mechanical pump seal R-M010D 35, CAR/SIC/CAR/SIC, EPDM, 304, analogue Burgmann M74-D, Anga VD, AESSEAL M010D, Roten 822 842 844, LIDERING LMS10D

Pre-order only

Vendor code: 1043814

Shaft diameter	35
Outer diameter of the fixed ring, mm	50
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$275

Double mechanical seal R-M010D 38, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043815

Shaft diameter	38
Outer diameter of the fixed ring, mm	56
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$298

Double mechanical seal R-M010D 40, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043816

Shaft diameter	40
Outer diameter of the fixed ring, mm	58
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$314

Double mechanical seal R-M010D 43, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043817

Shaft diameter	43
Outer diameter of the fixed ring, mm	61
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$337

Mechanical seal for pump R-M010D 45, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043818

Shaft diameter	45
Outer diameter of the fixed ring, mm	63
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$353

Double mechanical seal R-M010D 50, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043819

Shaft diameter	50
Outer diameter of the fixed ring, mm	70
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$392

Mechanical seal for pump R-M010D 53, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043820

Shaft diameter	53
Outer diameter of the fixed ring, mm	73
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$416

Mechanical seal for pump R-M010D 55, CAR/SIC/CAR/SIC, EPDM, 304, analogue LIDERING LMS10D, AESSEAL M010D, Burgmann M74-D, Anga VD, Roten 822 842 844

Pre-order only

Vendor code: 1043821

Shaft diameter	55
Outer diameter of the fixed ring, mm	75
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$431

Double mechanical seal R-M010D 58, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043822

Shaft diameter	58
Outer diameter of the fixed ring, mm	78
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$455

Double mechanical seal R-M010D 60, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043823

Shaft diameter	60
Outer diameter of the fixed ring, mm	80
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$471

Double mechanical seal R-M010D 63, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043824

Shaft diameter	63
Outer diameter of the fixed ring, mm	63
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$494

Double mechanical seal R-M010D 65, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043825

Shaft diameter	65
Outer diameter of the fixed ring, mm	85
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$510

Double mechanical seal R-M010D 68, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043826

Shaft diameter	68
Outer diameter of the fixed ring, mm	90
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$533

Double mechanical seal R-M010D 70, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043827

Shaft diameter	70
Outer diameter of the fixed ring, mm	92
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$549

Double mechanical seal R-M010D 75, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043828

Shaft diameter	75
Outer diameter of the fixed ring, mm	97
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$588

Mechanical seal R-M010D 80, CAR/SIC/CAR/SIC, EPDM, 304, analogue AESSEAL M010D, Burgmann M74-D, Anga VD, Roten 822 842 844, LIDERING LMS10D

Pre-order only

Vendor code: 1043829

Shaft diameter	80
Outer diameter of the fixed ring, mm	105
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$627

Double mechanical seal R-M010D 85, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043830

Shaft diameter	85
Outer diameter of the fixed ring, mm	110
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$667

Mechanical seal R-M010D 90, CAR/SIC/CAR/SIC, EPDM, 304 analogue Anga VD, AESSEAL M010D, Roten 822 842 844, Burgmann M74-D, LIDERING LMS10D

Pre-order only

Vendor code: 1043831

Shaft diameter	90
Outer diameter of the fixed ring, mm	115
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$707

Double mechanical seal R-M010D 95, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043832

Shaft diameter	95
Outer diameter of the fixed ring, mm	120
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$745

Double mechanical seal R-M010D 100, CAR/SIC/CAR/SIC, EPDM, 304

Pre-order only

Vendor code: 1043833

Shaft diameter	100
Outer diameter of the fixed ring, mm	125
Producer	BTS Engineering
Stationary and rotating face	CAR/SIC/CAR/SIC
Material of metal part	AISI 304 stainless steel

$784
