Mechanical seal R-M481KL-D

Mechanical seal R-M481KL-D

Mechanical shaft seal R-M481KL-D

Temperature: -40~200°C

Pressure: ≤1.6 MPa

Speed: ≤5 m/sec

Materials:

Rotating ring: SIC/Саг/TC;
Fixed ring: SIC;
Bellows: PTFE/EPDM/VITON;
Spring: SS304/SS316;
Metal parts: SS304/SS316.

Download PDF

Connect with us

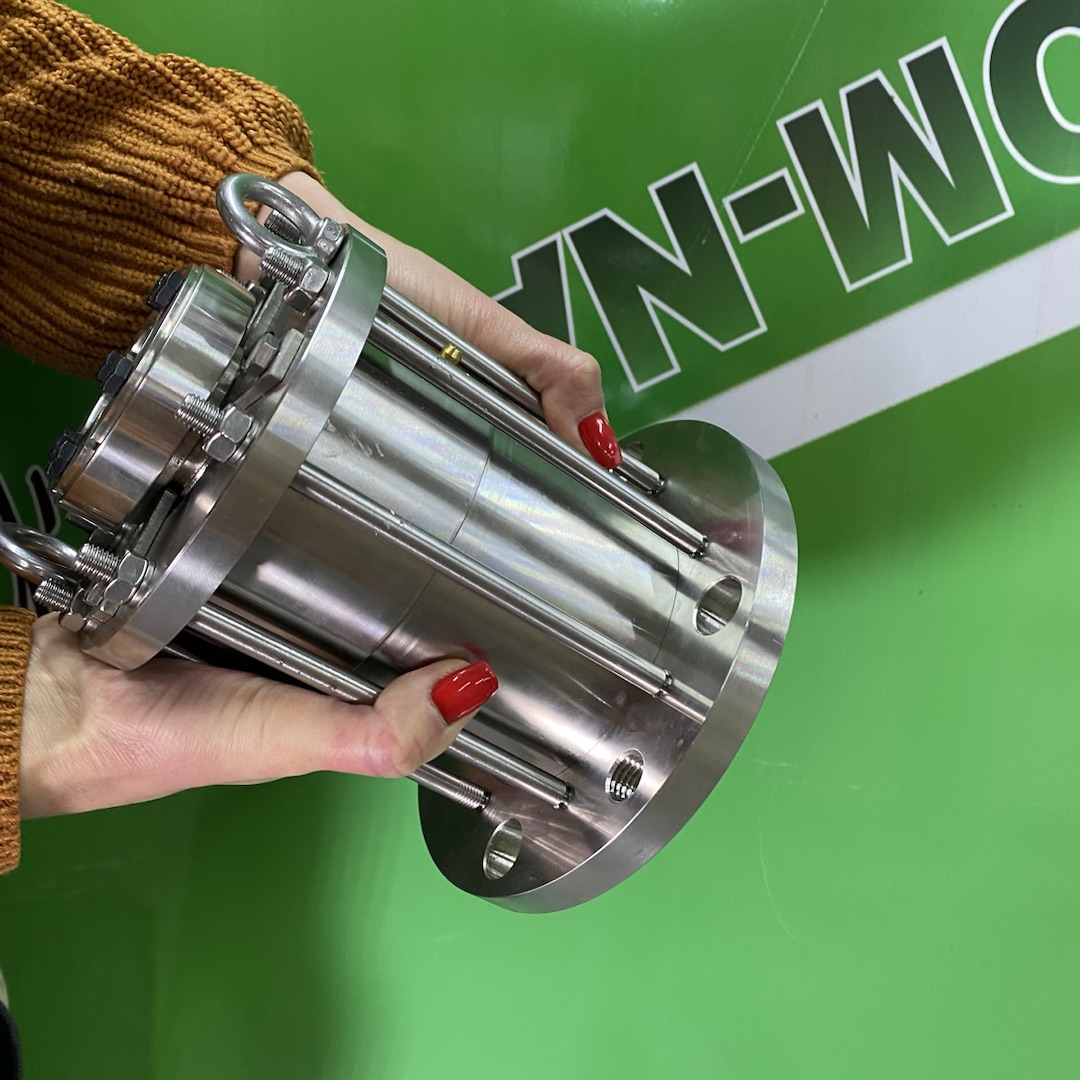

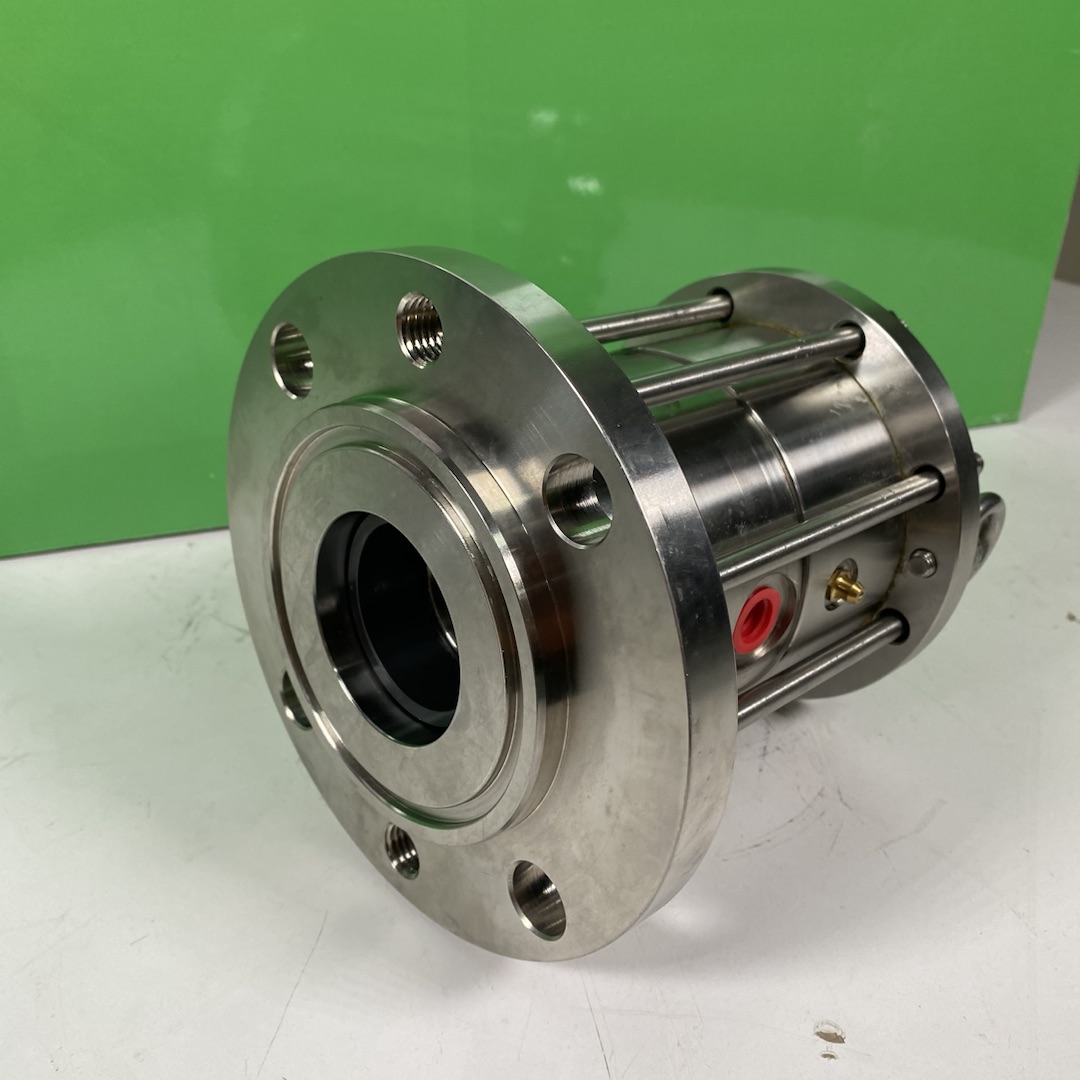

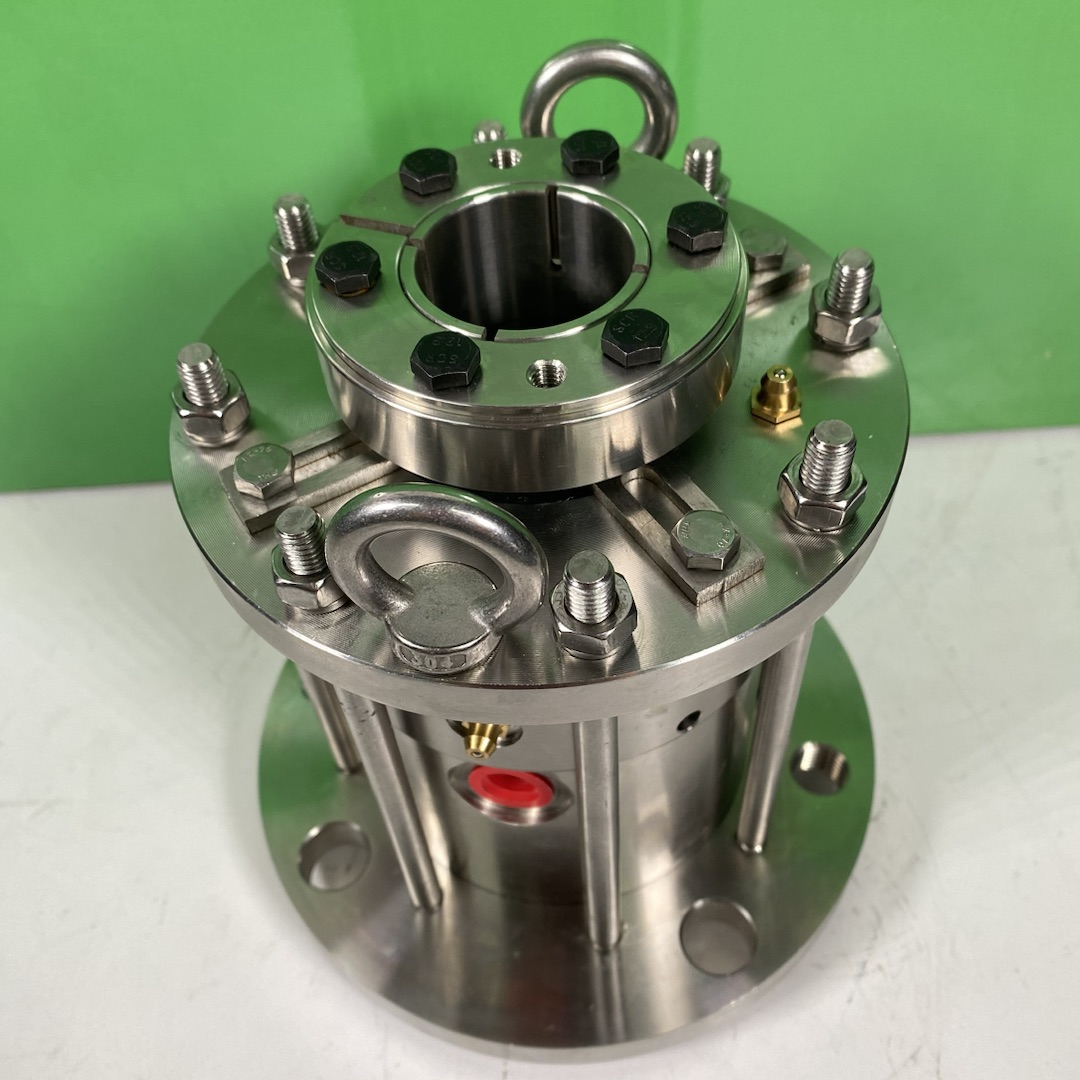

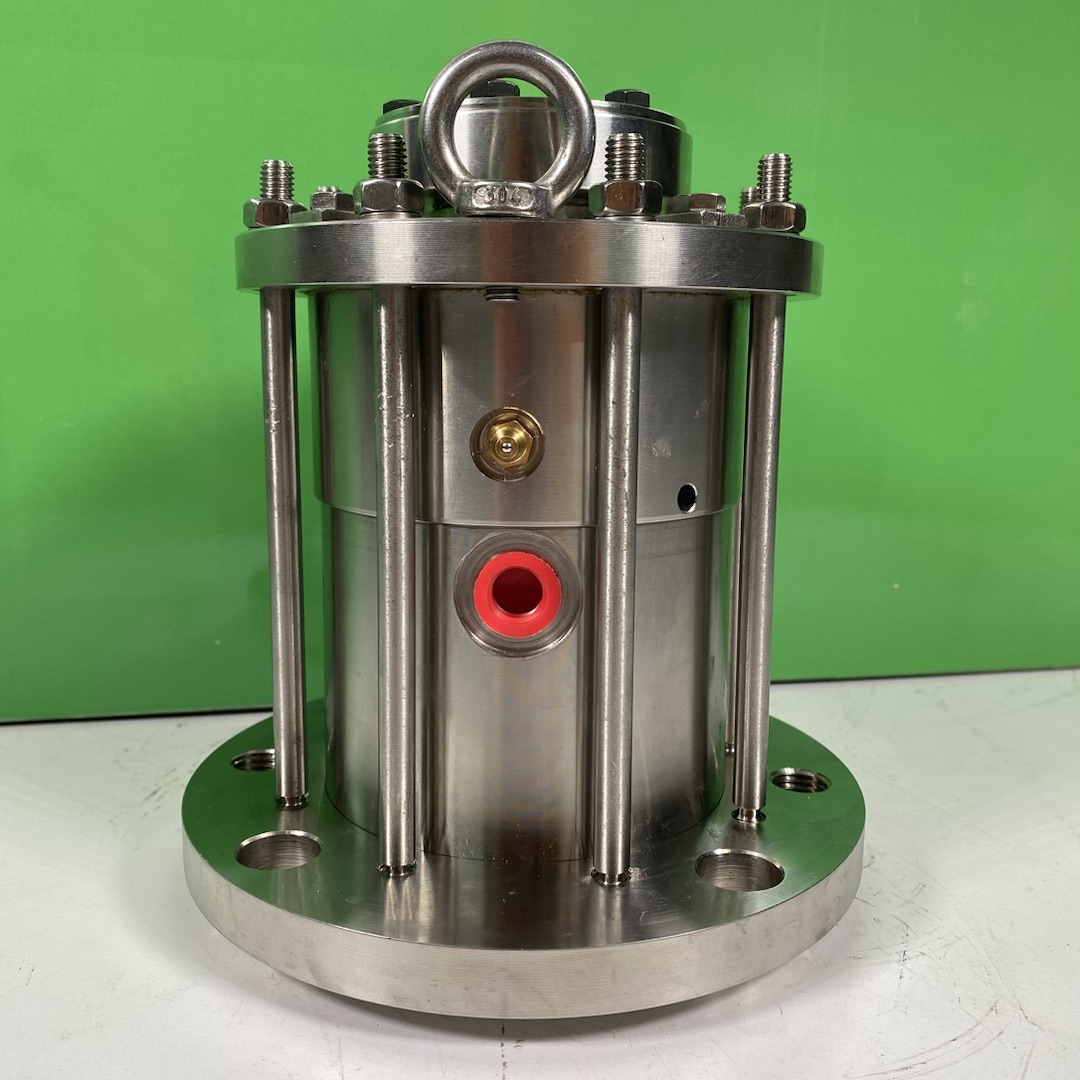

Double Seal for Stirrer R-M481KL-D is a ready-to-install unit with DIN connection.

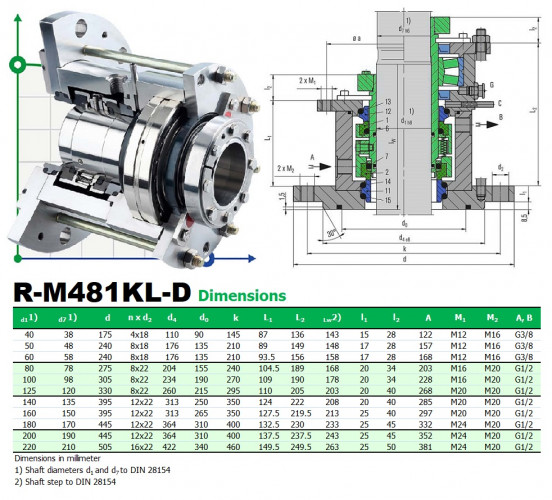

Main characteristics of R-M481KL-D:

Shaft diameter: d1=40...220 mm (1.57" .... 8.66");
Temperature: t=- 40-200°C (-40-392°F);
Pressure: p1=vacuum ... 16 bar (232 PSI), p3=max 18 bar (261 PSI);
Sliding speed: vg=0...5 m/s (0...16 ft/s);
When working with a buffer liquid with a pressure of up to 0.6 MPa, it is used as a single seal or as a double seal under a barrier liquid pressure of up to 1.6 MPa;
Unloaded, does not depend on the direction of shaft rotation;
With integrated floating bearing;
M481K and its variants are self-closing on the product side in the event of pressure fluctuations or reversals;
Coolant circulation in accordance with API 52, 53A piping plans.
