Mechanical seal R-M07
Mechanical seal R-M07

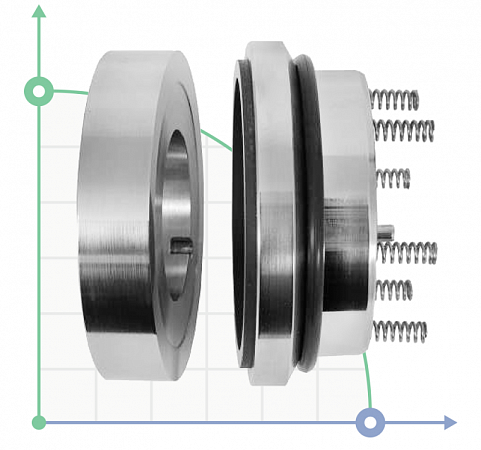

Mechanical mechanical seal for Inoxpa® Prolac® S-series pumps, SLR, Estampinox, Hyginox, Aspir, Tri-Clover. They are used as single seals, or in tandem with the R-W011 type. It is used as an external seal for the supply of cooling water.
Analog: Aesseal M07/M07U, Roplan R52, Roten S, Vulcan 50.
Temperature: -20°+200°
Pressure: ≤2.5 MPa
Speed: ≤25 m/sec
Materials:
- Rotating Ring: SIC/TC/Car;
- Stationary Ring: TC/SIC;
- Bellows: EPDM/VITON;
- Spring: SS304/SS316;
- Metal parts: SS304/SS316.
| d1 (d6) | d3 (Max) | d7 (h8) | L3 ±0.5 | L4 |
| 15.8 | 44.5 | 36.1 | 24 | 10.5 |
| 25.4 | 53.5 | 44.0 | 24 | 10.0 |
| 38.1 | 74.0 | 64.0 | 29 | 15.5 |
In stock
Vendor code: 13708_5/8__SIC/CAR__EPDM__304
| Producer | BTS Engineering |
| Shaft diameter | 5/8 |
| Rubber type | EPDM |
| Stationary and rotating face | SIC/CAR |
| Material of metal part | 304 |
$95.11
$-5.02
$100.13
In stock
Vendor code: 13708_1__SIC/CAR__EPDM__304
| Producer | BTS Engineering |
| Shaft diameter | 1 |
| Rubber type | EPDM |
| Stationary and rotating face | SIC/CAR |
| Material of metal part | 304 |
$152.11
$-8.02
$160.13
In stock
Vendor code: 13708_1.1/2__SIC/CAR__EPDM__304
| Producer | BTS Engineering |
| Shaft diameter | 1.1/2 |
| Rubber type | EPDM |
| Stationary and rotating face | SIC/CAR |
| Material of metal part | 304 |
$232.09
$-12.20
$244.29
